Drawdown risk measures ​

Drawdown-based risk measures describe how far the portfolio has fallen from its previous high at each point in time. Where variance and CVaR look at the cross-sectional distribution of single-period returns, drawdown measures look at the path of cumulative wealth — the maximum loss you would have experienced by holding the portfolio from any peak to any subsequent trough.

Four related measures are available:

MeasureWhat it penalises
MaximumDrawdownThe single worst peak-to-trough decline over the whole period
AverageDrawdownThe time-average depth of the drawdown curve
UlcerIndexThe root-mean-square of the drawdown curve (penalises long shallow drawdowns more than AverageDrawdown)
ConditionalDrawdownatRiskThe expected drawdown conditional on being in the worst-α fraction (CDaR, the drawdown analogue of CVaR)

When to reach for this

Reach for drawdown measures when the recovery path matters — trend-following strategies, strategies sold to retail investors who may redeem at the worst moment, or any portfolio where drawdown duration and depth are reported to stakeholders. Variance minimisation ignores paths entirely; these measures do not.

julia
using PortfolioOptimisers, PrettyTables, DataFrames

resfmt = (v, i, j) -> begin
    if j == 1
        return v
    else
        return isa(v, Number) ? "$(round(v * 100, digits = 3)) %" : v
    end
end;

1. Data and shared setup ​

julia
using CSV, TimeSeries, Clarabel

X = TimeArray(CSV.File(joinpath(@__DIR__, "..", "SP500.csv.gz")); timestamp = :Date)[(end - 252):end]
rd = prices_to_returns(X)
pr = prior(EmpiricalPrior(), rd)

slv = [Solver(; name = :clarabel1, solver = Clarabel.Optimizer,
              settings = Dict("verbose" => false),
              check_sol = (; allow_local = true, allow_almost = true)),
       Solver(; name = :clarabel2, solver = Clarabel.Optimizer,
              settings = Dict("verbose" => false, "max_step_fraction" => 0.95),
              check_sol = (; allow_local = true, allow_almost = true)),
       Solver(; name = :clarabel3, solver = Clarabel.Optimizer,
              settings = Dict("verbose" => false, "max_step_fraction" => 0.9),
              check_sol = (; allow_local = true, allow_almost = true))]

opt = JuMPOptimiser(; pe = pr, slv = slv)
JuMPOptimiser
       pe ┼ LowOrderPrior
          │         X ┼ 252×20 Matrix{Float64}
          │        mu ┼ 20-element Vector{Float64}
          │     sigma ┼ 20×20 Matrix{Float64}
          │      chol ┼ nothing
          │         w ┼ nothing
          │       ens ┼ nothing
          │       kld ┼ nothing
          │        ow ┼ nothing
          │        rr ┼ nothing
          │      f_mu ┼ nothing
          │   f_sigma ┼ nothing
          │       f_w ┴ nothing
      slv ┼ 3-element Vector{Solver}
          │ Solver ⋯
          │ Solver ⋯
          │ Solver ⋯
       wb ┼ WeightBounds
          │   lb ┼ Float64: 0.0
          │   ub ┴ Float64: 1.0
      bgt ┼ Float64: 1.0
     sbgt ┼ nothing
       lt ┼ nothing
       st ┼ nothing
     lcse ┼ nothing
      cte ┼ nothing
   gcarde ┼ nothing
  sgcarde ┼ nothing
     smtx ┼ nothing
    sgmtx ┼ nothing
      slt ┼ nothing
      sst ┼ nothing
     sglt ┼ nothing
     sgst ┼ nothing
       tn ┼ nothing
     fees ┼ nothing
     sets ┼ nothing
       tr ┼ nothing
      ple ┼ nothing
      ret ┼ ArithmeticReturn
          │   ucs ┼ nothing
          │    lb ┼ nothing
          │    mu ┴ nothing
      sca ┼ SumScalariser()
     ccnt ┼ nothing
     cobj ┼ nothing
       sc ┼ Int64: 1
       so ┼ Int64: 1
       ss ┼ nothing
     card ┼ nothing
    scard ┼ nothing
      wn2 ┼ nothing
      wnp ┼ nothing
    wninf ┼ nothing
       l1 ┼ nothing
       l2 ┼ nothing
     linf ┼ nothing
       lp ┼ nothing
      brt ┼ Bool: false
   cle_pr ┼ Bool: true
   strict ┴ Bool: false

2. Minimising each drawdown measure ​

These measures drop into MeanRisk with no extra configuration. Their constructors only take an optional settings::RiskMeasureSettings; ConditionalDrawdownatRisk additionally accepts alpha (the tail probability, default 0.05).

julia
r_mdd = MaximumDrawdown()
r_add = AverageDrawdown()
r_uci = UlcerIndex()
r_cdar = ConditionalDrawdownatRisk()

results = map([r_mdd, r_add, r_uci, r_cdar]) do r
    return optimise(MeanRisk(; r = r, opt = opt))
end
labels = ["MDD", "ADD", "Ulcer", "CDaR 5%"]

pretty_table(DataFrame(hcat(rd.nx, [r.w for r in results]...),
                       [:assets; Symbol.(labels)...]); formatters = [resfmt])
┌────────┬──────────┬──────────┬──────────┬──────────┐
│ assets │      MDD │      ADD │    Ulcer │  CDaR 5% │
│    Any │      Any │      Any │      Any │      Any │
├────────┼──────────┼──────────┼──────────┼──────────┤
│   AAPL │    0.0 % │    0.0 % │    0.0 % │    0.0 % │
│    AMD │   -0.0 % │    0.0 % │    0.0 % │   -0.0 % │
│    BAC │    0.0 % │    0.0 % │    0.0 % │    0.0 % │
│    BBY │   -0.0 % │    0.0 % │    0.0 % │   -0.0 % │
│    CVX │    0.0 % │    0.0 % │    0.0 % │    0.0 % │
│     GE │   -0.0 % │    0.0 % │    0.0 % │   -0.0 % │
│     HD │    0.0 % │    0.0 % │    0.0 % │    0.0 % │
│    JNJ │ 67.181 % │ 19.758 % │ 29.674 % │ 38.725 % │
│    JPM │    0.0 % │    0.0 % │    0.0 % │    0.0 % │
│     KO │    0.0 % │    0.0 % │    0.0 % │    0.0 % │
│    LLY │  6.369 % │    0.0 % │  4.612 % │  5.567 % │
│    MRK │  5.662 % │ 38.898 % │ 25.462 % │  7.176 % │
│   MSFT │    0.0 % │    0.0 % │    0.0 % │    0.0 % │
│    PEP │ 10.952 % │    0.0 % │    0.0 % │    0.0 % │
│    PFE │    0.0 % │    0.0 % │    0.0 % │    0.0 % │
│      ⋮ │        ⋮ │        ⋮ │        ⋮ │        ⋮ │
└────────┴──────────┴──────────┴──────────┴──────────┘
                                        5 rows omitted

The allocations diverge noticeably. MaximumDrawdown minimises the single worst event so it concentrates into whatever reduces that peak loss. AverageDrawdown and UlcerIndex care about the whole recovery path and therefore spread weight more broadly. CDaR is the closest to CVaR in spirit and allocations.

julia
using StatsPlots, GraphRecipes, StatsBase

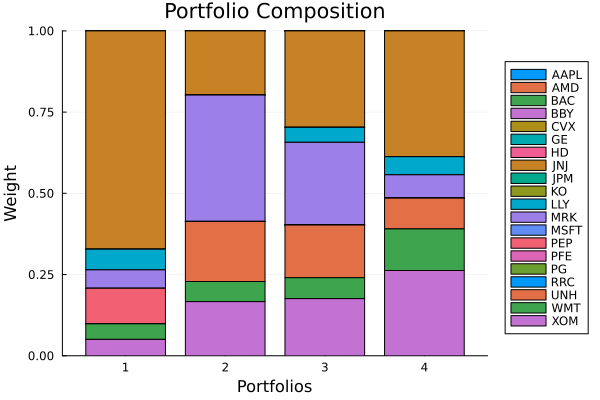

plot_stacked_bar_composition(results, rd)

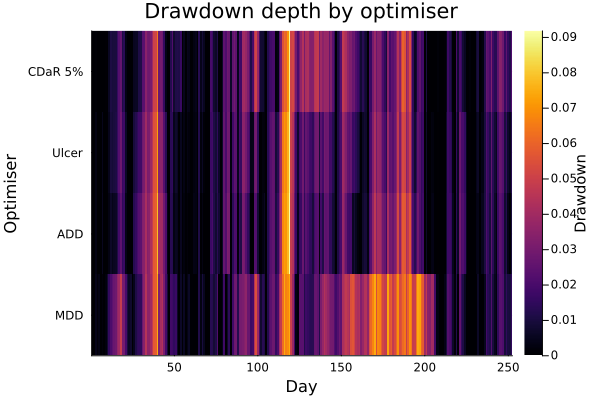

To avoid an unreadable spaghetti chart, we compare drawdown paths with a heatmap instead of many overlaid lines. Darker cells indicate deeper drawdowns for that optimiser at that date.

julia
drawdown_grid = hcat([(-drawdowns(rd.X * res.w)) for res in results]...)
heatmap(eachindex(rd.ts), labels, drawdown_grid'; xlabel = "Day", ylabel = "Optimiser",
        colorbar_title = "Drawdown", title = "Drawdown depth by optimiser")

3. Tail level sensitivity for CDaR — sweeping alpha ​

ConditionalDrawdownatRisk accepts alpha. As alpha → 0 it focuses on catastrophic tail drawdowns; larger alpha broadens the tail set and moves toward average-tail behaviour.

julia
alphas = [0.01, 0.05, 0.1, 0.25]
cdar_results = [optimise(MeanRisk(; r = ConditionalDrawdownatRisk(; alpha = a), opt = opt))
                for a in alphas]

pretty_table(DataFrame(hcat(rd.nx, [r.w for r in cdar_results]...),
                       [:assets; Symbol.("CDaR_" .* string.(alphas))...]);
             formatters = [resfmt])
┌────────┬───────────┬───────────┬──────────┬───────────┐
│ assets │ CDaR_0.01 │ CDaR_0.05 │ CDaR_0.1 │ CDaR_0.25 │
│    Any │       Any │       Any │      Any │       Any │
├────────┼───────────┼───────────┼──────────┼───────────┤
│   AAPL │     0.0 % │     0.0 % │    0.0 % │     0.0 % │
│    AMD │     0.0 % │    -0.0 % │   -0.0 % │    -0.0 % │
│    BAC │     0.0 % │     0.0 % │    0.0 % │     0.0 % │
│    BBY │     0.0 % │    -0.0 % │   -0.0 % │     0.0 % │
│    CVX │     0.0 % │     0.0 % │    0.0 % │     0.0 % │
│     GE │     0.0 % │    -0.0 % │   -0.0 % │    -0.0 % │
│     HD │     0.0 % │     0.0 % │    0.0 % │     0.0 % │
│    JNJ │  63.749 % │  38.725 % │ 34.907 % │  31.571 % │
│    JPM │     0.0 % │     0.0 % │    0.0 % │     0.0 % │
│     KO │   1.179 % │     0.0 % │    0.0 % │     0.0 % │
│    LLY │   8.586 % │   5.567 % │  3.354 % │   5.208 % │
│    MRK │     0.0 % │   7.176 % │ 15.667 % │   22.41 % │
│   MSFT │     0.0 % │     0.0 % │    0.0 % │     0.0 % │
│    PEP │     0.0 % │     0.0 % │  6.188 % │     0.0 % │
│    PFE │     0.0 % │     0.0 % │    0.0 % │     0.0 % │
│      ⋮ │         ⋮ │         ⋮ │        ⋮ │         ⋮ │
└────────┴───────────┴───────────┴──────────┴───────────┘
                                           5 rows omitted

Lower alpha focuses more on preventing catastrophic drawdowns; higher alpha cares about average drawdown depth across more of the distribution.

4. Constraining drawdown rather than minimising it ​

Instead of using a drawdown measure as the primary objective, you can impose an upper bound on it while optimising return. Here we find the portfolio that maximises risk-adjusted return subject to a CDaR ceiling, using RiskMeasureSettings to set the ub.

julia
rf = 4.2 / 100 / 252
r_cdar_ub = ConditionalDrawdownatRisk(; settings = RiskMeasureSettings(; ub = 0.08))
res_cdar_max_ratio = optimise(MeanRisk(; r = r_cdar_ub, obj = MaximumRatio(; rf = rf),
                                       opt = opt))
println("CDaR-constrained max-ratio retcode: $(res_cdar_max_ratio.retcode)")
CDaR-constrained max-ratio retcode: OptimisationSuccess
  res ┴ Dict{Any, Any}: Dict{Any, Any}()

5. Drawdown analytics — post-optimisation diagnostics ​

After choosing a portfolio, drawdowns() and cumulative_returns() give a full picture of how the portfolio would have behaved over the in-sample period. These are analytics, not objectives — use them to understand a portfolio after the optimiser has run.

julia
# Pick two portfolios to compare side by side.
w_var = optimise(MeanRisk(; r = Variance(), opt = opt)).w
w_cdar = results[4].w   ## CDaR minimising portfolio

# Portfolio return time series for each weight vector.
ret_var = rd.X * w_var
ret_cdar = rd.X * w_cdar

# Cumulative returns (simple).
cr_var = cumulative_returns(ret_var)
cr_cdar = cumulative_returns(ret_cdar)

# Drawdown series.
dd_var = drawdowns(ret_var)
dd_cdar = drawdowns(ret_cdar)

# Summary statistics.
pretty_table(DataFrame(;
                       :Metric =>
                           ["Max drawdown", "Avg drawdown", "Ulcer index", "CDaR 5%"],
                       :MinVariance =>
                           [-minimum(dd_var), -mean(dd_var), sqrt(mean(dd_var .^ 2)),
                            -quantile(-dd_var, 0.95)],
                       :MinCDaR =>
                           [-minimum(dd_cdar), -mean(dd_cdar), sqrt(mean(dd_cdar .^ 2)),
                            -quantile(-dd_cdar, 0.95)]); formatters = [resfmt])
┌──────────────┬─────────────┬──────────┐
│       Metric │ MinVariance │  MinCDaR │
│       String │     Float64 │  Float64 │
├──────────────┼─────────────┼──────────┤
│ Max drawdown │      9.19 % │  8.965 % │
│ Avg drawdown │     2.622 % │  1.902 % │
│  Ulcer index │     3.472 % │  2.535 % │
│      CDaR 5% │    -6.869 % │ -5.095 % │
└──────────────┴─────────────┴──────────┘

The CDaR-minimising portfolio has a materially lower CDaR than the variance-minimising portfolio. The variance portfolio may still have a lower standard deviation, but when you look at the path, its drawdown profile is worse in the tail.

julia
plot(cr_var; label = "Min Variance", xlabel = "Day", ylabel = "Cumulative return",
     title = "Cumulative return paths")
plot!(cr_cdar; label = "Min CDaR")

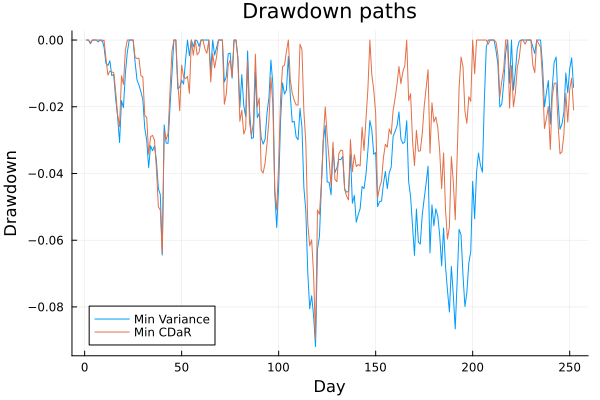

plot(dd_var; label = "Min Variance", xlabel = "Day", ylabel = "Drawdown",
     title = "Drawdown paths")
plot!(dd_cdar; label = "Min CDaR")

Summary ​

Drawdown measures target the path of cumulative wealth:

  • MaximumDrawdown guards against the worst single episode but can produce concentrated portfolios.

  • AverageDrawdown and UlcerIndex penalise the entire recovery curve.

  • ConditionalDrawdownatRisk is the natural drawdown analogue of CVaR and responds to alpha the same way.

    • Heatmaps of drawdowns() are often clearer than overlaid line plots when comparing many drawdown-optimised portfolios.

  • After optimisation, drawdowns() and cumulative_returns() give the full diagnostic picture for any weight vector without re-running the optimiser.

This page was generated using Literate.jl.
