The source files can be found in examples/.
Time-dependent constraints
The constraints on the earlier pages are static. You set them when you build the optimiser, and every optimisation uses the same values. Under cross-validation a fold is a separate optimisation over its own window of time. Some constraints must change with that window, such as a weight cap that falls over time, a turnover limit measured from the last rebalance, or bounds that tighten when the training window is volatile.
TimeDependent lets a field change from fold to fold, and this page calls it a schedule. It wraps a vector with one value per fold, a vector schedule, or a function of the fold's TimeDependentContext, a callable. You put the schedule in the field it changes, as in JuMPOptimiser(; wb = TimeDependent([...])), so the field names what changes. A field holds a static value or a schedule, never both. A field that takes a schedule, such as a field whose type is TD_Option, accepts three forms.
- Static. You set the field, and every fold uses the same value.
- A vector schedule,
TimeDependent([v₁, …, vₙ]). Entryiis the field's whole value for foldi, with the folds in the order thatsplitreturns them. - A callable,
TimeDependent(f). The loop that runs one optimisation per fold, the fold loop, callsf(ctx)on every fold to compute the value.fis a function, or a struct that subtypesTimeDependentConstraintCallable.
Two rules decide which value a fold gets.
- Entry
ibelongs to foldiofsplit(cv, rd). The library never reorders the folds. A walk-forward returns its folds in calendar order, so there entryiapplies to thei-th window in time. When the order of a scheme is not the calendar, key the value to the fold's indices, which the context gives you. - A schedule has no effect outside a fold loop. A plain
optimisecall has no folds. There the field takes its static default, or the value you give in the schedule'sdefaultkeyword.
We run one portfolio problem under four cross-validation schemes, IndexWalkForward, KFold, CombinatorialCrossValidation and MultipleRandomised. Under each scheme we compare the static optimiser with one schedule or more.
using PortfolioOptimisers, PrettyTablesresfmt = (v, i, j) -> begin if j == 1 return v else return isa(v, Number) ? "$(round(v*100, digits=2)) %" : v endend;1. Setting up
We load three years of daily prices and build a minimum-variance MeanRisk optimiser with two Clarabel solvers. The library tries the second solver when the first fails. The field we vary in most sections is wb, the bounds of the weights. We change its upper bound, because the effect shows in the largest weight of a fold. Sections 2.4, 3.1 and 7.6 put a schedule in card, tn and lcse. The optimiser we build here has no cap, and it is the static baseline.
using CSV, TimeSeries, DataFrames, Clarabel, Statistics, StableRNGsX = TimeArray(CSV.File(joinpath(@__DIR__, "..", "SP500.csv.gz")); timestamp = :Date)[(end - 252 * 3):end]rd = prices_to_returns(X)slv = [Solver(; name = :clarabel1, solver = Clarabel.Optimizer, settings = Dict("verbose" => false), check_sol = (; allow_local = true, allow_almost = true)), Solver(; name = :clarabel2, solver = Clarabel.Optimizer, settings = Dict("verbose" => false, "max_step_fraction" => 0.9), check_sol = (; allow_local = true, allow_almost = true))];mr_static = MeanRisk(; opt = JuMPOptimiser(; slv = slv))max_weights(pred) = [maximum(p.res.w) for p in pred.pred];2. The three forms
2.1 Static
A static cap of 20 % is a value of the wb field.
mr_capped = MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = WeightBounds(; lb = 0.0, ub = 0.2)))MeanRisk
opt ┼ JuMPOptimiser
│ pe ┼ EmpiricalPrior
│ │ ce ┼ PortfolioOptimisersCovariance
│ │ │ ce ┼ Covariance
│ │ │ │ me ┼ SimpleExpectedReturns
│ │ │ │ │ w ┴ nothing
│ │ │ │ ce ┼ GeneralCovariance
│ │ │ │ │ ce ┼ SimpleCovariance: SimpleCovariance(true)
│ │ │ │ │ w ┴ nothing
│ │ │ │ alg ┼ FullMoment()
│ │ │ │ w ┴ nothing
│ │ │ mp ┼ MatrixProcessing
│ │ │ │ pdm ┼ Posdef
│ │ │ │ │ alg ┼ UnionAll: NearestCorrelationMatrix.Newton
│ │ │ │ │ kwargs ┴ @NamedTuple{}: NamedTuple()
│ │ │ │ dn ┼ nothing
│ │ │ │ dt ┼ nothing
│ │ │ │ alg ┼ nothing
│ │ │ │ order ┴ NTuple{4, Symbol}: (:pdm, :dn, :dt, :alg)
│ │ me ┼ SimpleExpectedReturns
│ │ │ w ┴ nothing
│ │ horizon ┼ nothing
│ │ fill_limit ┼ nothing
│ │ x_src ┴ nothing
│ slv ┼ 2-element Vector{Solver}
│ │ Solver ⋯
│ │ Solver ⋯
│ wb ┼ WeightBounds
│ │ lb ┼ Float64: 0.0
│ │ ub ┴ Float64: 0.2
│ bgt ┼ Float64: 1.0
│ sbgt ┼ nothing
│ gbgt ┼ nothing
│ lt ┼ nothing
│ st ┼ nothing
│ lcse ┼ nothing
│ cte ┼ nothing
│ gcarde ┼ nothing
│ sgcarde ┼ nothing
│ smtx ┼ nothing
│ sgmtx ┼ nothing
│ slt ┼ nothing
│ sst ┼ nothing
│ sglt ┼ nothing
│ sgst ┼ nothing
│ tn ┼ nothing
│ fees ┼ nothing
│ sets ┼ nothing
│ tr ┼ nothing
│ ple ┼ nothing
│ ret ┼ ArithmeticReturn
│ │ settings ┼ JuMPReturnsSettings
│ │ │ scale ┼ Float64: 1.0
│ │ │ lb ┼ nothing
│ │ │ rte ┼ Bool: true
│ │ │ fee ┼ Bool: true
│ │ │ mic ┴ Bool: true
│ │ ucs ┼ nothing
│ │ mu ┼ nothing
│ │ mtx_sqrt ┴ EigenFallbackSquareRoot()
│ sca ┼ SumScalariser()
│ ccnt ┼ nothing
│ cobj ┼ nothing
│ sc ┼ Int64: 1
│ so ┼ Int64: 1
│ ss ┼ nothing
│ card ┼ nothing
│ scard ┼ nothing
│ l2c ┼ nothing
│ lpc ┼ nothing
│ linfc ┼ nothing
│ l1 ┼ nothing
│ l2 ┼ nothing
│ lp ┼ nothing
│ linf ┼ nothing
│ xbgt ┼ Bool: false
│ strict ┴ Bool: false
r ┼ Variance
│ settings ┼ RiskMeasureSettings
│ │ scale ┼ Float64: 1.0
│ │ ub ┼ nothing
│ │ rke ┴ Bool: true
│ sigma ┼ nothing
│ chol ┼ nothing
│ rc ┼ nothing
│ alg ┼ SquaredSOCRiskExpr()
│ mtx_sqrt ┼ EigenFallbackSquareRoot()
│ ratio_alg ┼ SquareRootRatio()
│ corner ┴ nothing
obj ┼ MinimumRisk()
wi ┼ nothing
fb ┴ nothing
2.2 Vector schedule
A vector schedule has one value per fold. The field decides what the value means, so the same Threshold schedule is a long threshold in lt and a short threshold in st.
This schedule lowers the cap from 35 % on the first fold to 20 % on the last. We size it later, when we know how many folds the scheme returns. A vector schedule must have one entry per fold. The fold loop checks the length when it splits the data, before any fold runs.
function deleverage(n, bind = :outermost) return TimeDependent([WeightBounds(; lb = 0.0, ub = 0.35 - 0.15 * (i - 1) / max(n - 1, 1)) for i in 1:n], bind)end;2.3 Callable
A callable computes the value when the fold runs. The fold loop calls it with a TimeDependentContext, whose fields are these.
i, the fold's position in the order ofsplit, andn, the number of folds.rd, the returns data. UnderMultipleRandomisedit has only the path's assets.train_idxandtest_idx, the training and test indices of all the folds.w_prev, the previous fold's weights. It isnothingunless the fold loop passes the previous weights from fold to fold.path_id, the fold's path under a scheme with many paths, andnothingotherwise.
This callable computes the falling cap of section 2.2 from i and n alone. We use it to compare a vector schedule and a callable that state the same rule.
deleverage_fn = TimeDependent(ctx -> WeightBounds(; lb = 0.0, ub = 0.35 - 0.15 * (ctx.i - 1) / max(ctx.n - 1, 1)));This callable changes with the data. It computes the annualised volatility of an equal-weight portfolio over the fold's training window, and it lowers the cap as that volatility rises. It indexes ctx.train_idx with ctx.i. i is the fold's position in the scheme's own order, so ctx.train_idx[ctx.i] and ctx.test_idx[ctx.i] are this fold's windows under any scheme. The cap is 35 % minus the volatility, kept between 15 % and 35 %.
function vol_cap(ctx) Xtr = ctx.rd.X[ctx.train_idx[ctx.i], :] vol = std(Xtr * fill(1 / size(Xtr, 2), size(Xtr, 2))) * sqrt(252) return WeightBounds(; lb = 0.0, ub = clamp(0.35 - vol, 0.15, 0.35))endvol_cap_td = TimeDependent(vol_cap);A callable can also be a struct with a method that takes the context. The struct subtypes TimeDependentConstraintCallable, which is a subtype of TimeDependentCallable. A struct has two advantages over a function. Its parameters are fields you can inspect. A needs_previous_weights method on its type can declare that it uses the previous weights, with no PreviousWeightsFunction wrapper.
We write the falling cap once more, as a type whose two parameters are the first cap and the last.
struct DeleverageCap <: PortfolioOptimisers.TimeDependentConstraintCallable hi::Float64 lo::Float64endfunction (c::DeleverageCap)(ctx::TimeDependentContext) return WeightBounds(; lb = 0.0, ub = c.hi - (c.hi - c.lo) * (ctx.i - 1) / max(ctx.n - 1, 1))enddeleverage_struct = TimeDependent(DeleverageCap(0.35, 0.2))TimeDependent
val ┼ Main.DeleverageCap
│ hi ┼ Float64: 0.35
│ lo ┴ Float64: 0.2
bind ┼ Symbol: :outermost
default ┴ NoDefault()
2.4 When a wrong entry fails
You pass a schedule as a keyword value, and a wrong field name is an ordinary keyword error. The constructor also builds the optimiser once with each entry of a vector schedule in the field. An entry that the field does not accept fails when you build the optimiser, not when a fold runs. A callable has no entries to test. The fold loop checks its value on every fold instead.
We put a Threshold in card, which takes an integer, and then 0, which is not positive.
try JuMPOptimiser(; slv = slv, card = TimeDependent([Threshold(; val = 0.01)]))catch err errendTypeError(Symbol("keyword argument"), :card, Union{Nothing, var"#s9238", var"#s2258"} where {var"#s2258"<:Integer, var"#s9238"<:TimeDependent}, Threshold
val ┴ Float64: 0.01
)try JuMPOptimiser(; slv = slv, card = TimeDependent([0]))catch err errendDomainError(0, "0 < card must hold. Got\ncard => 0")2.5 No effect outside a fold loop
A plain optimise call has no folds. The schedule has no effect, and wb takes its static default. We solve the scheduled optimiser and the uncapped baseline on the full sample and compare their weights with isapprox.
mr_sched = MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage(4)))res_sched = optimise(mr_sched, rd)res_static = optimise(mr_static, rd)isapprox(res_sched.w, res_static.w)true3. Walk-forward
A walk-forward suits a time-dependent constraint. Its folds are consecutive rebalances. Fold i covers a later date range than fold i - 1. We train on one year and test on the quarter after it.
wf = IndexWalkForward(252, 63)n_wf = n_splits(wf, rd)8The vector schedule needs one entry per fold, so we size it with n_splits. We backtest the four optimisers over the same walk-forward with cross_val_predict and print the largest weight of every fold. On every fold the loop puts the fold's value in the field and solves the optimiser as it would without a schedule.
mr_wf_sched = MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage(n_wf)))mr_wf_fn = MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage_fn))mr_wf_vol = MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = vol_cap_td))pred_wf_static = cross_val_predict(mr_static, rd, wf)pred_wf_sched = cross_val_predict(mr_wf_sched, rd, wf)pred_wf_fn = cross_val_predict(mr_wf_fn, rd, wf)pred_wf_vol = cross_val_predict(mr_wf_vol, rd, wf)pretty_table(DataFrame(:fold => 1:n_wf, :static => max_weights(pred_wf_static), :schedule => max_weights(pred_wf_sched), :callable => max_weights(pred_wf_fn), :vol_callable => max_weights(pred_wf_vol)); formatters = [resfmt])┌───────┬─────────┬──────────┬──────────┬──────────────┐
│ fold │ static │ schedule │ callable │ vol_callable │
│ Int64 │ Float64 │ Float64 │ Float64 │ Float64 │
├───────┼─────────┼──────────┼──────────┼──────────────┤
│ 1 │ 39.87 % │ 35.0 % │ 35.0 % │ 15.0 % │
│ 2 │ 28.46 % │ 28.47 % │ 28.47 % │ 15.0 % │
│ 3 │ 26.02 % │ 26.02 % │ 26.02 % │ 20.37 % │
│ 4 │ 22.98 % │ 22.99 % │ 22.99 % │ 21.29 % │
│ 5 │ 14.99 % │ 14.99 % │ 14.99 % │ 14.99 % │
│ 6 │ 16.5 % │ 16.5 % │ 16.5 % │ 16.5 % │
│ 7 │ 30.3 % │ 22.14 % │ 22.14 % │ 18.01 % │
│ 8 │ 33.48 % │ 20.0 % │ 20.0 % │ 16.83 % │
└───────┴─────────┴──────────┴──────────┴──────────────┘The static optimiser has no cap. Under the vector schedule the largest weight stays under a cap that falls from fold to fold. The callable column states the same falling cap, so compare it with the schedule column fold by fold. The volatility callable moves its cap with the volatility of the training window, not with the fold number.
We also backtest the struct and compare its weights with those of the function, fold by fold.
pred_wf_struct = cross_val_predict(MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage_struct)), rd, wf)all(isapprox(a.res.w, b.res.w) for (a, b) in zip(pred_wf_struct.pred, pred_wf_fn.pred))trueThe composition plot shows the schedule's weights on every fold. On the last folds the cap binds, and the weight spreads over more assets.

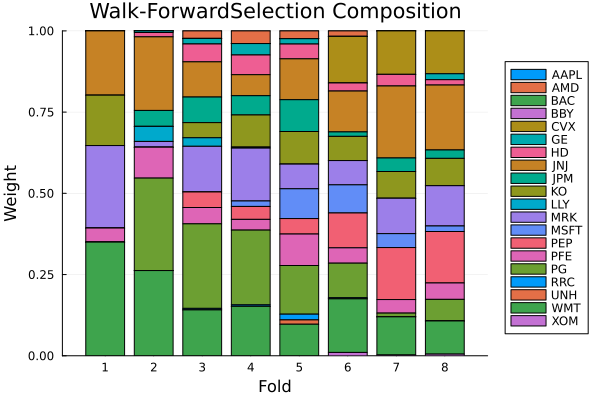

using StatsPlots, GraphRecipesplot_composition(pred_wf_sched)
3.1 Previous weights
The fold loop puts the schedule's value in the field before it gives the optimiser the previous fold's weights. So a turnover constraint that a schedule puts in a fold gets the previous weights. A callable can also use ctx.w_prev, but a function cannot declare that it does. Wrap it in PreviousWeightsFunction to declare it. The wrapper makes needs_previous_weights return true. On a scheme whose folds are a timeline, the fold loop then runs the folds in sequence. A callable with no wrapper gets w_prev === nothing, unless another part of the optimiser makes the loop run in sequence.
Here no weight can move more than 2 percentage points from its previous value at a rebalance. Fold 1 has no previous weights. The callable returns nothing there, and that fold has no turnover constraint. The table gives the sum of the absolute changes of the weights at every rebalance, with and without the budget.
tn_budget = TimeDependent(PreviousWeightsFunction(ctx -> if isnothing(ctx.w_prev) nothing else Turnover(; w = ctx.w_prev, val = 0.02) end))mr_wf_tn = MeanRisk(; opt = JuMPOptimiser(; slv = slv, tn = tn_budget))pred_wf_tn = cross_val_predict(mr_wf_tn, rd, wf)function l1turnover(pred) return [sum(abs, pred.pred[i].res.w - pred.pred[i - 1].res.w) for i in 2:length(pred.pred)]endpretty_table(DataFrame(:rebalance => 2:n_wf, :static => l1turnover(pred_wf_static), :budgeted => l1turnover(pred_wf_tn)); formatters = [resfmt])┌ Info: Running cross-validation sequentially because the folds of the cross-validation scheme are a timeline (folds_are_time_ordered(cv) == true) and the optimiser must use the previous optimisation's weights (needs_previous_weights(opt) == true). The second fact is because somewhere within the optimisation estimator is contained at least one of the following:
│ - Turnover and/or TurnoverEstimator,
│ - WeightsTracking,
│ - TurnoverRiskMeasure,
│ - custom constraints which use asset weights,
│ - custom objective penalties which use asset weights,
│ - a time-dependent constraint whose entries need previous weights (e.g. a PreviousWeightsFunction).
└ To enable parallel processing please either mark the weights as fixed or remove the offending component(s). Time-dependent constraints alone do not force sequential processing.
┌───────────┬──────────┬──────────┐
│ rebalance │ static │ budgeted │
│ Int64 │ Float64 │ Float64 │
├───────────┼──────────┼──────────┤
│ 2 │ 102.85 % │ 12.0 % │
│ 3 │ 65.75 % │ 17.86 % │
│ 4 │ 28.51 % │ 21.12 % │
│ 5 │ 54.86 % │ 21.04 % │
│ 6 │ 56.26 % │ 19.86 % │
│ 7 │ 52.86 % │ 23.62 % │
│ 8 │ 19.77 % │ 20.63 % │
└───────────┴──────────┴──────────┘The budgeted run moves its weights less than the static run at every rebalance. The run also logs an informational message. It says that the loop runs in sequence because the optimiser needs the previous weights, and that a time-dependent constraint alone does not force this. A schedule that needs no previous weights leaves the folds free to run in parallel.
4. KFold
KFold splits the data into consecutive blocks of time. Fold i tests on block i and trains on the other blocks. A schedule works here with no change. Entry i is the constraint while block i is out of sample. The library does not treat these folds as a timeline. No fold gets the previous fold's weights, and the folds run in parallel.
kfold = KFold(; n = 4)mr_kf_sched = MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage(4)))pred_kf_static = cross_val_predict(mr_static, rd, kfold)pred_kf_sched = cross_val_predict(mr_kf_sched, rd, kfold)pred_kf_fn = cross_val_predict(MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage_fn)), rd, kfold)pretty_table(DataFrame(:fold => 1:4, :static => max_weights(pred_kf_static), :schedule => max_weights(pred_kf_sched), :callable => max_weights(pred_kf_fn)); formatters = [resfmt])┌───────┬─────────┬──────────┬──────────┐
│ fold │ static │ schedule │ callable │
│ Int64 │ Float64 │ Float64 │ Float64 │
├───────┼─────────┼──────────┼──────────┤
│ 1 │ 25.76 % │ 25.78 % │ 25.78 % │
│ 2 │ 32.87 % │ 30.0 % │ 30.0 % │
│ 3 │ 27.41 % │ 25.0 % │ 25.0 % │
│ 4 │ 35.8 % │ 20.0 % │ 20.0 % │
└───────┴─────────┴──────────┴──────────┘A vector schedule of the wrong length fails when the loop splits the data, before any fold is solved. The error gives the number of folds the scheme returns.
try cross_val_predict(MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage(7))), rd, kfold)catch err errendDimensionMismatch("time-dependent entries for wb (7) must equal the number of folds (4)")5. Combinatorial
Under CombinatorialCrossValidation a fold is a split into training and test data. The test data of a split is a union of several separate blocks of time. ctx.test_idx[ctx.i] is a vector of those blocks. The splits come in a combinatorial order, not a timeline, and the library does not make one up. Entry i belongs to split i of split(ccv, rd), which you can inspect. To tie a constraint to time under this scheme, use a callable that orders the split's windows, ctx.train_idx[ctx.i] and ctx.test_idx[ctx.i], as your problem needs.
ccv = CombinatorialCrossValidation(; n_folds = 4, n_test_folds = 2)n_ccv = n_splits(ccv)6Four blocks with two test blocks per split give six splits. The schedule needs six entries, one per split in the order of split(ccv, rd). A split covers several blocks of time, so a cap per split is coarser than a cap per walk-forward fold. We run the schedule and the static optimiser under this scheme.
mr_cc_sched = MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage(n_ccv)))pred_cc_static = cross_val_predict(mr_static, rd, ccv)pred_cc_sched = cross_val_predict(mr_cc_sched, rd, ccv)pretty_table(DataFrame(:path => 1:length(pred_cc_sched.pred), :static => [maximum(maximum(p.res.w) for p in path.pred) for path in pred_cc_static.pred], :schedule => [maximum(maximum(p.res.w) for p in path.pred) for path in pred_cc_sched.pred]); formatters = [resfmt])┌───────┬─────────┬──────────┐
│ path │ static │ schedule │
│ Int64 │ Float64 │ Float64 │
├───────┼─────────┼──────────┤
│ 1 │ 35.74 % │ 35.0 % │
│ 2 │ 37.0 % │ 28.64 % │
│ 3 │ 37.23 % │ 23.0 % │
└───────┴─────────┴──────────┘The table gives the largest weight on each path. A path joins the test blocks of several splits, and each block ran under the cap of its own split. The largest weight of a path mixes those caps, and the table does not show the cap of one split.
6. MultipleRandomised
MultipleRandomised draws random subsets of the assets and runs a walk-forward on every subset, which gives one path per subset. Two things change for a schedule.
ctx.iis the fold's position in its path. After the run the library sorts the predictions by test window for the report. The order of the output never changes which entry a fold gets.- Every path has its own assets. The fold loop restricts the optimiser, schedule entries included, to the path's assets before it puts the fold's value in the field. A callable finds the path's assets in
ctx.rd.nx.
A callable that uses the number of assets suits this scheme. This one caps every weight at twice the equal weight of the path.
mrand = MultipleRandomised(IndexWalkForward(252, 63); subset_size = 15, n_subsets = 3, rng = StableRNG(987654321), seed = 42)universe_cap = TimeDependent(ctx -> WeightBounds(; lb = 0.0, ub = 2.0 / length(ctx.rd.nx)))mr_mr_fn = MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = universe_cap))pred_mr_static = cross_val_predict(mr_static, rd, mrand)pred_mr_fn = cross_val_predict(mr_mr_fn, rd, mrand)pretty_table(DataFrame(:path => 1:length(pred_mr_fn.pred), :static => [maximum(maximum(p.res.w) for p in path.pred) for path in pred_mr_static.pred], :callable => [maximum(maximum(p.res.w) for p in path.pred) for path in pred_mr_fn.pred], :cap => fill(2.0 / 15, length(pred_mr_fn.pred))); formatters = [resfmt])┌───────┬─────────┬──────────┬─────────┐
│ path │ static │ callable │ cap │
│ Int64 │ Float64 │ Float64 │ Float64 │
├───────┼─────────┼──────────┼─────────┤
│ 1 │ 42.14 % │ 13.33 % │ 13.33 % │
│ 2 │ 40.0 % │ 13.33 % │ 13.33 % │
│ 3 │ 39.87 % │ 13.33 % │ 13.33 % │
└───────┴─────────┴──────────┴─────────┘A vector schedule also works under this scheme. Size it to the folds of one path, which is the fold count of the walk-forward. Every path uses the same schedule.
n_mr = n_splits(IndexWalkForward(252, 63), rd)mr_mr_sched = MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage(n_mr)))pred_mr_sched = cross_val_predict(mr_mr_sched, rd, mrand)length(pred_mr_sched.pred)37. Nested fold loops: which loop uses the schedule?
A meta-optimiser such as Stacking or NestedClustered runs a cross-validation of its own when you give it a cv. It uses that cross-validation to estimate the out-of-sample returns of its inner optimisers. A schedule inside such a meta-optimiser can then be inside two fold loops. One is the meta-optimiser's inner loop. The other is the outer loop of a backtest, when you pass the meta-optimiser to cross_val_predict. The schedule's bind decides which loop uses it.
- With the default,
:outermost, the outermost fold loop uses the schedule. - With
:nearest, in section 7.5, the nearest loop that encloses the schedule uses it.
In both cases, size the entries to the loop that uses them.
7.1 Outer cross-validation, no inner cross-validation
This is every run on the page so far. The backtest's fold loop puts each fold's value in the field.
7.2 No outer cross-validation, inner cross-validation
A meta-optimiser that you pass to optimise has one fold loop, its inner cross-validation. That loop uses the schedules of the inner optimisers, so you size them to the inner folds. The meta-optimiser's solves over the full window have no folds, and they use the static defaults, as a plain optimise does.
Here one of the two stacked optimisers lowers its cap across the inner KFold(4) folds. Those folds compute the out-of-sample returns that the outer optimiser combines.
st_inner = Stacking(; opti = [MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage(4))), mr_static], opto = mr_static, cv = OptimisationCrossValidation(; cv = KFold(; n = 4)))res_st_inner = optimise(st_inner, rd)maximum(res_st_inner.w)0.2727360333277463With a schedule of the wrong length, the same estimator fails at the inner split.
try optimise(Stacking(; opti = [MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage(7))), mr_static], opto = mr_static, cv = OptimisationCrossValidation(; cv = KFold(; n = 4))), rd)catch err errendDimensionMismatch("time-dependent entries for wb (7) must equal the number of folds (4)")7.3 Outer and inner cross-validation
A backtest of the same meta-optimiser adds an outer fold loop. The outer loop now puts the outer fold's value in every field that has a schedule, in the meta-optimiser and in its inner optimisers, before the meta-optimiser runs. The inner KFold(4) then sees only static optimisers. So the schedule must have one entry per outer fold, although the meta-optimiser has an inner KFold(4).
st_nested = Stacking(; opti = [MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage(n_wf))), mr_static], opto = mr_static, cv = OptimisationCrossValidation(; cv = KFold(; n = 4)))pred_st_nested = cross_val_predict(st_nested, rd, wf)pretty_table(DataFrame(:fold => 1:n_wf, :stacked => max_weights(pred_st_nested)); formatters = [resfmt])┌───────┬─────────┐
│ fold │ stacked │
│ Int64 │ Float64 │
├───────┼─────────┤
│ 1 │ 35.0 % │
│ 2 │ 28.47 % │
│ 3 │ 26.02 % │
│ 4 │ 22.99 % │
│ 5 │ 14.99 % │
│ 6 │ 16.5 % │
│ 7 │ 23.72 % │
│ 8 │ 22.47 % │
└───────┴─────────┘The estimator of section 7.2, with its schedule sized to the inner folds, now fails at the outer split. The estimator is the same, but the outer walk-forward now uses the schedule, and it has n_wf folds.
try cross_val_predict(st_inner, rd, wf)catch err errendDimensionMismatch("time-dependent entries for wb (4) must equal the number of folds (8)")7.4 Tuning over schedules
A schedule is a field value, so you can tune it like any other hyperparameter. GridSearchCrossValidation puts each candidate in the field through the estimator's constructor, which checks it. The search then scores the candidate with its own cross-validation. Here it picks one of three candidates for wb: no cap, the falling cap of section 2.2, and a cap that falls less.
function gentler(n) return TimeDependent([WeightBounds(; lb = 0.0, ub = 0.45 - 0.1 * (i - 1) / max(n - 1, 1)) for i in 1:n])end;candidates = ["opt.wb" => [WeightBounds(), deleverage(n_wf), gentler(n_wf)]]gs = GridSearchCrossValidation(candidates; cv = wf)gs_res = search_cross_validation(mr_static, gs, rd)gs_res.idx2gs_res.idx is the position of the candidate with the best out-of-sample score, and gs_res.val_grid[gs_res.idx] is a tuple with that candidate in it. The search's fold loop uses the entries of each vector schedule among the candidates, so each of them must have n_splits(gs.cv, rd) entries.
7.5 Bind a schedule to the inner loop with :nearest
In section 7.3 the outer loop used the schedule of an inner optimiser. With bind = :nearest, the meta-optimiser's inner cross-validation uses the schedule, also when an outer loop backtests the meta-optimiser. Use it for an inner optimiser whose cap must follow the inner KFold(4) under any outer backtest. Here the second argument of deleverage passes bind. The outer loop skips the schedule and the inner loop uses it, so you size it to the inner folds under an outer backtest too.
st_bind_near = Stacking(; opti = [MeanRisk(; opt = JuMPOptimiser(; slv = slv, wb = deleverage(4, :nearest))), mr_static], opto = mr_static, cv = OptimisationCrossValidation(; cv = KFold(; n = 4)))pred_bind_near = cross_val_predict(st_bind_near, rd, wf)pretty_table(DataFrame(:fold => 1:n_wf, :nearest => max_weights(pred_bind_near)); formatters = [resfmt])┌───────┬─────────┐
│ fold │ nearest │
│ Int64 │ Float64 │
├───────┼─────────┤
│ 1 │ 39.87 % │
│ 2 │ 28.46 % │
│ 3 │ 26.02 % │
│ 4 │ 22.98 % │
│ 5 │ 14.99 % │
│ 6 │ 16.5 % │
│ 7 │ 30.3 % │
│ 8 │ 33.48 % │
└───────┴─────────┘The schedule of four entries that failed at the outer split in section 7.3 now runs. With :nearest, the inner KFold(4) uses it and the outer loop does not. You can mix the two values of bind. The wb of a meta-optimiser can be :outermost, sized to the backtest, while the schedule of an inner optimiser is :nearest, sized to the inner scheme. Each loop checks the length of its own schedules when it splits the data.
7.6 A schedule of constraint vectors
A field that takes a vector of constraints changes from fold to fold through a vector of vectors. Entry i is the whole constraint vector of fold i. Here the linear constraints lcse cap the weight of WMT at 15 % on every fold, and they add a cap of 15 % on JNJ in the second half of the folds. The uncapped baseline puts its largest weight on WMT on the first fold and on JNJ on the last two folds.
sets = UniverseSets(; dict = Dict("nx" => rd.nx))cap_a = LinearConstraintEstimator(; val = "WMT <= 0.15")cap_b = LinearConstraintEstimator(; val = "JNJ <= 0.15")lcse_sched = TimeDependent([i <= n_wf ÷ 2 ? [cap_a] : [cap_a, cap_b] for i in 1:n_wf])mr_lcse = MeanRisk(; opt = JuMPOptimiser(; slv = slv, sets = sets, lcse = lcse_sched))pred_lcse = cross_val_predict(mr_lcse, rd, wf)asset_weights(pred, name) = [p.res.w[findfirst(==(name), rd.nx)] for p in pred.pred]pretty_table(DataFrame(:fold => 1:n_wf, :WMT_static => asset_weights(pred_wf_static, "WMT"), :WMT_schedule => asset_weights(pred_lcse, "WMT"), :JNJ_static => asset_weights(pred_wf_static, "JNJ"), :JNJ_schedule => asset_weights(pred_lcse, "JNJ")); formatters = [resfmt])┌───────┬────────────┬──────────────┬────────────┬──────────────┐
│ fold │ WMT_static │ WMT_schedule │ JNJ_static │ JNJ_schedule │
│ Int64 │ Float64 │ Float64 │ Float64 │ Float64 │
├───────┼────────────┼──────────────┼────────────┼──────────────┤
│ 1 │ 39.87 % │ 15.0 % │ 16.51 % │ 24.38 % │
│ 2 │ 26.23 % │ 15.0 % │ 22.65 % │ 25.45 % │
│ 3 │ 14.11 % │ 14.12 % │ 10.84 % │ 10.85 % │
│ 4 │ 15.24 % │ 15.0 % │ 6.47 % │ 6.51 % │
│ 5 │ 9.71 % │ 9.71 % │ 12.59 % │ 12.59 % │
│ 6 │ 16.5 % │ 15.0 % │ 12.57 % │ 12.82 % │
│ 7 │ 11.1 % │ 12.22 % │ 30.3 % │ 15.0 % │
│ 8 │ 9.6 % │ 10.42 % │ 33.48 % │ 15.0 % │
└───────┴────────────┴──────────────┴────────────┴──────────────┘The weight of WMT stays at or under its cap on every fold. In the first half of the folds JNJ has no cap, and on the first two folds it takes a part of the weight that the cap removes from WMT. In the second half, the cap of JNJ binds on the folds where the baseline puts more than 15 % on it.
A schedule is always the whole value of a field. An entry of a constraint vector cannot be a schedule. To change some entries of a constraint vector and keep the others, build the fold's vector in a callable, TimeDependent(ctx -> [dynamic(ctx), a_static_constraint]). The static parts then stay in one place.
8. Summary
| Form | How you write it | When the library checks it | Parallel folds | Use it for |
|---|---|---|---|---|
| Static | the field itself | when you build the optimiser | yes | constraints that do not change |
| Vector schedule | field = TimeDependent([v₁, …, vₙ]) | every entry when you build the optimiser, and the length when the fold loop splits the data | yes, unless an entry needs the previous weights on a timeline scheme | plans known in advance: a falling cap, a mandate in phases, regime dates |
| Callable | field = TimeDependent(f), with f a function or a TimeDependentConstraintCallable struct | its value on every fold, through the constructor of the field's optimiser | yes, unless it declares the previous weights on a timeline scheme, through the PreviousWeightsFunction wrapper or the struct's method | values computed from the fold: the volatility regime, the number of assets, the previous weights |
Under every scheme, entry i is the value for fold i in the order of split, and ctx.train_idx[ctx.i] and ctx.test_idx[ctx.i] are the windows of that fold. In every form, each fold solves an ordinary static optimiser. The fold loop builds it through the constructor that checks the field, so the fold's solve never sees a schedule. A field that takes a vector of constraints takes a schedule of vectors, as in section 7.6.
The meta-optimisers NestedClustered, Stacking and SubsetResampling take schedules in their own fields, such as wb, fees, pe, sets and wf, and in their optimiser fields. They pass the fold's value on to their inner optimisers. The bind of a schedule chooses the fold loop that uses it. With the default, :outermost, an outer loop over a meta-optimiser uses an inner schedule with the outer folds. A meta-optimiser that runs alone uses it in its inner cross-validation. With :nearest, as in section 7.5, the inner cross-validation uses the schedule under an outer backtest.
One rule decides which inputs take a schedule. An input that states what the fold solves can change from fold to fold: the prior, the constraints, the risk measures, the objective, the asset sets and the fallbacks. An input that states how the fold is solved stays static: the solvers, the random number generators and the cross-validation scheme of a meta-optimiser. The type of each constructor argument enforces the rule. The optimiser is part of what the fold solves, so a schedule of whole optimisers also works, passed to cross_val_predict or held in a field that takes an optimiser. Time-dependent optimisers covers that case.
